Patent Amorphous Stainless Steel Powders for HVAF Thermal Spraying Replacing Chrome Plating

1. Description

Becken patent Nano2 Stainless Steel Gas Atomized Powder is of uniform amorphous microstructure, especially in the fine sizes as 3-10um, 5-20um and 15-45um etc. After HVAF metal spraying in low heat input, the feature of Coating can still maintain mainly amorphous microstructure, which has excellent corrosion resistance, high hardness and wear resistance, good metallurgical bonding. Application temperature is usually under 400 ℃.

Type	Chemical Composition（%）
Type	Fe	Cr	Si	B	C	Mn	S+P+Al	Mo+Cu+Co	W+V
Nano2	Balance	5-40	0-10	1-15	0.1-15	0.1-10	0.05-5	0-5	0-5

2. Characters

★ Excellent Corrosion Resistance

The corrosion resistance of Becken Nano2 coating is superior to 316L.

★ Superior Wear Resistance

The wear resistance of Becken Nano2 coating is very good for amorphous microstructure

★ Low Oxygen and Superior Flowability

The oxygen content, superior sphericity and flowability of Becken patent Nano2 Stainless Steel Gas Atomized Powder are very good.

★ Lower price and highly yield

The cost is very competitive because of our unique technical process increase the yield.

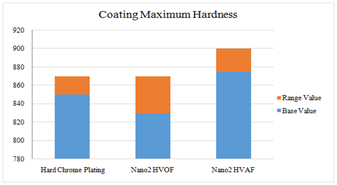

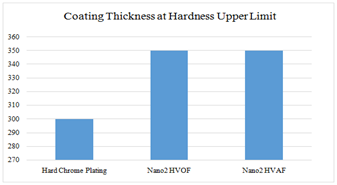

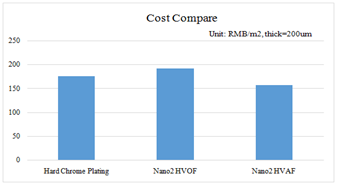

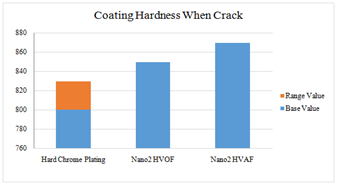

3. Coating hardness and cost compare

4. Applications

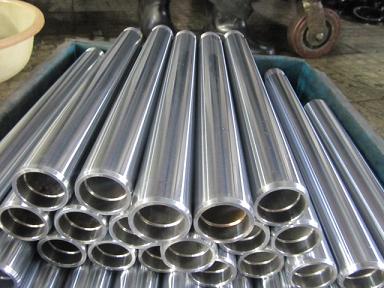

HVAF Thermal Spraying	Industrial Rollers	Hollow Piston Rods

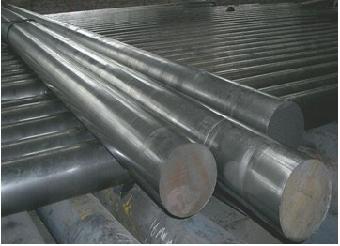

Solid Shats	Crane Arm and Drivepipes	Transmission Shafts

5. Package

The standard packaging is by vacuum bag per 10 kg. We can do according to the customer requirements for packaging.
