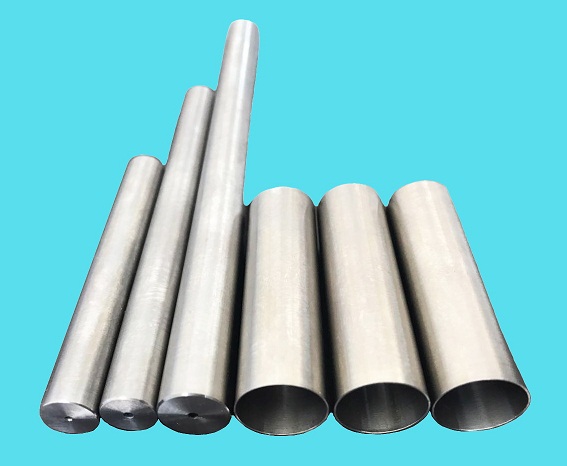

1. Titanium Tubes for Medical
Top quality medical titanium tubes of AMT are produced by advanced drilling machine in China. The inner and outer diameter size and length size can be accurately controlled, and also our titanium tubes can maintain a good ovality and concentricity. The minimum inner diameter of titanium tubes of AMT can reach 0.5mm and the thinnest thickness can reach 0.3mm. Titanium tubes of AMT finally are polished by polishing machine which makes the outer surface bright and fine, and also very clean without oil, residue, etc. Additionally AMT strictly control the composition of titanium tubes in accordance with medical standards, making titanium tubes of AMT harmless to the human body when implanted in.
|
2. Chemical Composition and Mechanical Properties of the Titanium Tubes for Medical
Chemical Composition Requirements of ASTM F136 as follows:
|
AWS Classification |
Weight Percent Max |
|
C |
O |
H |
N |
Fe |
Al |
V |
Ti |
Ti-6Al-4VELI |
0.08 |
0.13 |
0.012 |
0.05 |
0.25 |
5.5-6.50 |
3.5-4.5 |
Rem |
|
Mechanical Properties Requirements of ASTM F136 as follows: |
AWS Classification
|
Nominal Diameter
(mm)
|
Tensile Strength
≥
(MPa) |
Yield Strength
≥
(MPa) |
Elongation
≥
(%) |
Reduction of Area
≥
(%) |
Ti-6Al-4VELI |
＜4.75 |
860 |
795 |
10 |
- |
4.75-44.45 |
860 |
795 |
10 |
25 |
44.45-63.50 |
825 |
760 |
8 |
20 |
96.50-101.60 |
825 |
760 |
8 |
15 |
|
| |
|
Titanium tubes for medical widely used in modern medical, processed into a special shape and implanted into bodys, as bones or other medical equipments. We have the Three advantages:
A. Silver shiny clean- Our tubes are clean, silver shiny. The competitors are some dull.

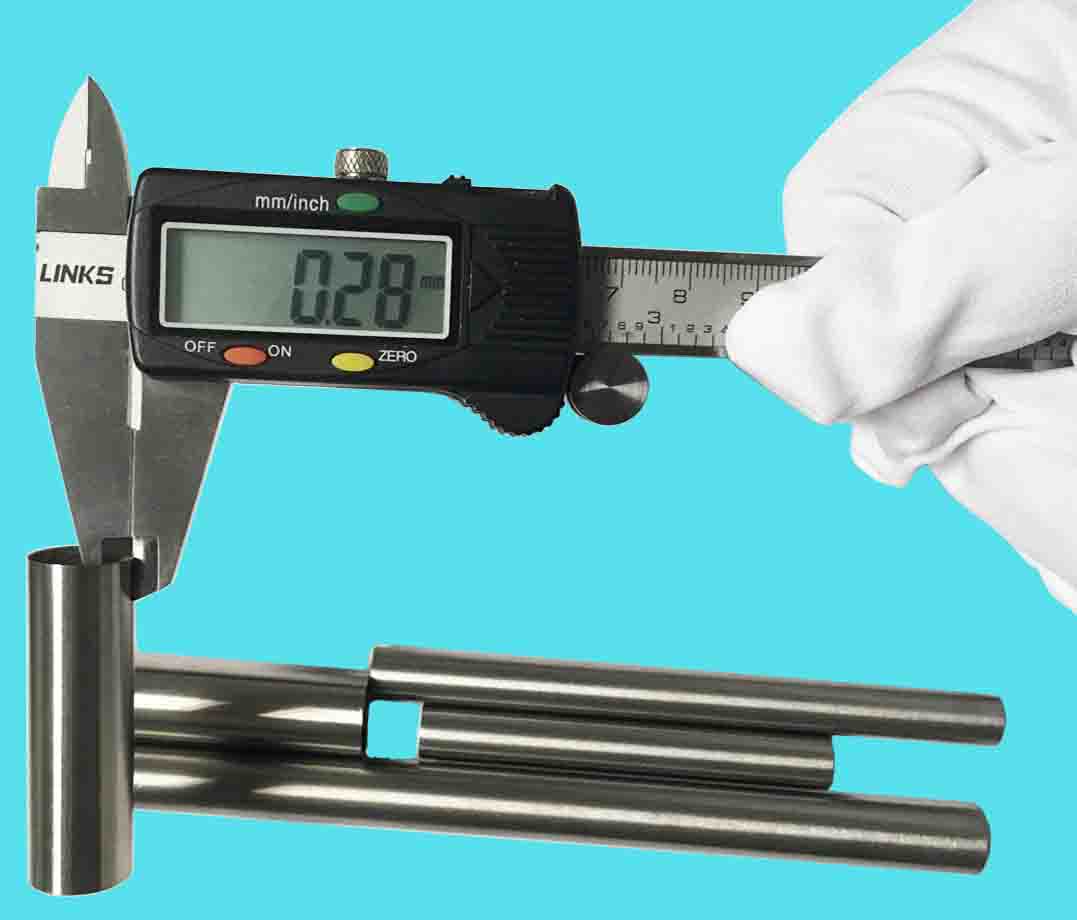

B. Precise size tolerance control- The size tolerance of our tubes can be controlled at 0.05mm.
C. Good biocompatibility – Our tubes can be implanted into the body for a long time for strict control of chemical composition |
| |
| 4. Typical Size and Packing |
Typical size: 10mm and 13mm in outer diameter, 3.18mm and 4.5mm in inner diameter, 350mm, 370mm and 500mm in length;
Packing: Packed by plastic film and pearl wool |
