| Unique Nano Stainless Steel Atomized Powders for Thermal Spraying |
 |
|
1. Description
|
 |
|
The coating of our unique Nano Stainless Steel Atomized Powder is of Nano scale and amorphous microstructure. After HVOF metal spraying , the feature of coating is charactered by superior wear resistance, excellent corrosion resistance and good metallurgical bonding.
Fe |
Cr |
Ni |
Si |
B |
Ti |
C |
Mn |
Mo + Cu + Co |
W + V |
La + Ce + Yt |
Balance |
15-45% |
0-15% |
0.04-5.5% |
2-12% |
0.01-8% |
0.5-8% |
0.01-5% |
0-15% |
0-15% |
0-5% |
|
Properties |
Full Density |
Cost |
Size, um |
Application |
Heat Input |

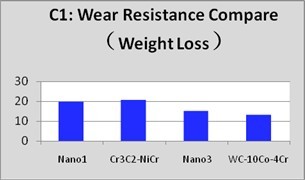

Wear Resistance |
Corrosion Resistance |
Replacing |
Nano1 |
7.0-9.0 |
Very Economic |
15-45, 38-125 |
HVOF, Plasma, Flame |
AAA |
AA+ |
A+ |
Cr3C2-NiCr, NiBSi, NiCrBSi |
Cr3C2-NiCr |
6.5-6.8 |
Expensive |
15-45 |
HVOF, Plasma |
AAA |
AA |
AAA |
|
Nano3 |
7.0-9.0 |
Very Economic |
15-45 |
HVOF, Plasma |
AAA |
AAA |
A+ |
WC-10Co-4Cr or WC-12Co in economical Applications |
WC-10Co-4Cr or WC-12Co |
14-14.6 |
Very Expensive |
15-45 |
HVOF, Plasma |
AAA |
AAAA |
AA |
|
|
| 2. Unique Nano Stainless Steel Atomized Powders for Thermal Spraying |
|
|
|
NANO 3
Our Nano 3 can replace tungsten carbide WC-10Co-4Cr powder or WC-12Co powder for HVOF metal spraying when wear is not so cruelty, while the Cost-effective of Nano 3 is about twice than WC-10Co-4Cr powder or
WC-12Co powder and also saving the tungsten resource. Typical applications as follows:
 |
 |
 |

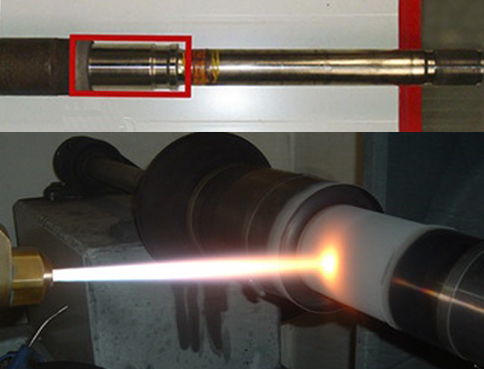

P31 HVOF Sprayed and Machined Oil Drill Rod |

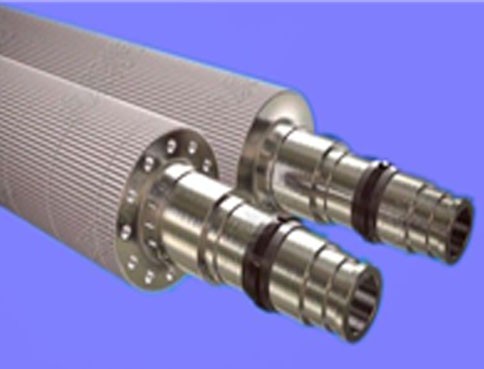

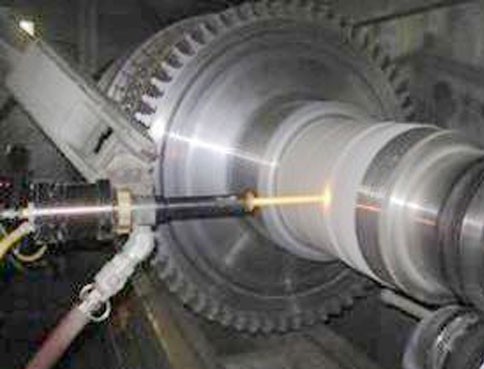

P32 HVOF Sprayed Corrugating Roll |
P33 HVOF Sprayed Electricity Rotor |
 |
 |
 |

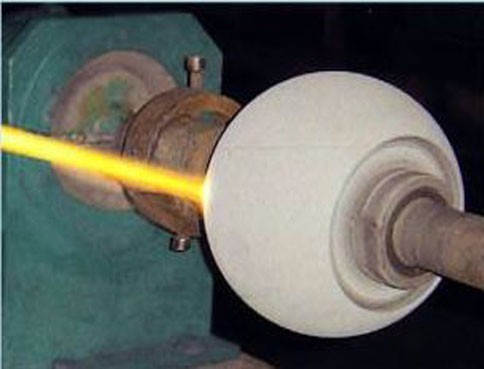

P34 HVOF Sprayed Valve Ball |

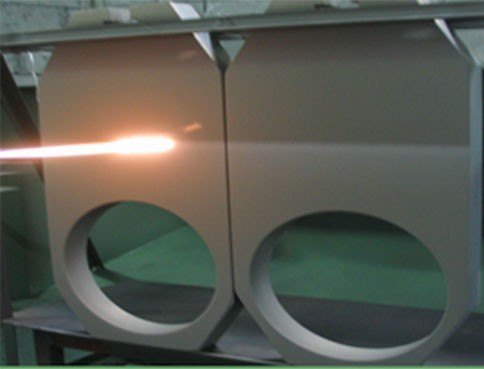

P35 HVOF Sprayed Valve Plate |

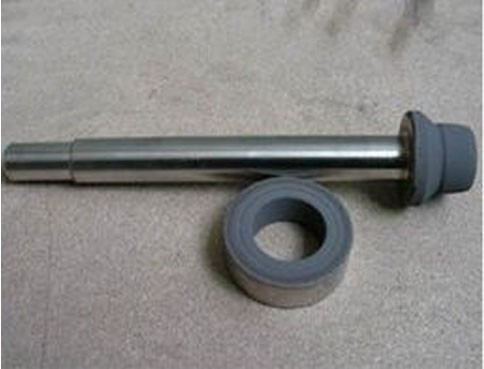

P36 HVOF Sprayed Valve Seat and Pole |
NANO 1
Our Unique Nano 1 powder can replace all Cr3C2-NiCr powder, NiBSi or NiCrBSi powder for metal Thermal spraying, while the Cost-effective of Nano 1 is about twice than Cr3C2-NiCr powder. Typical applications as follows:
 |
 |
 |

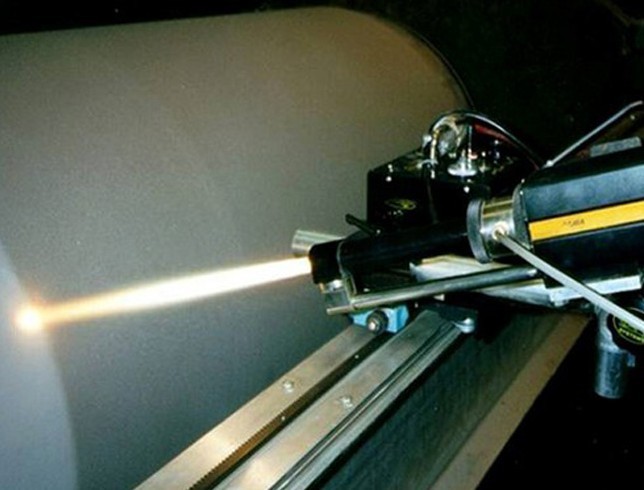

P11 Drying Cylinder in Paper Industry |

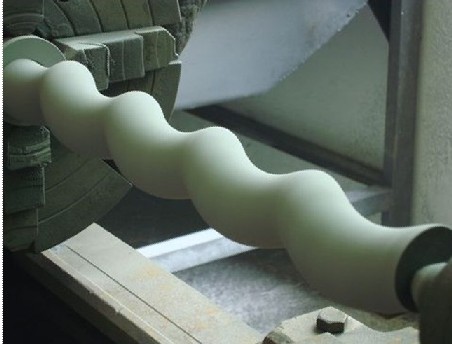

P12 Spiral Powder Feeder / Extruder |

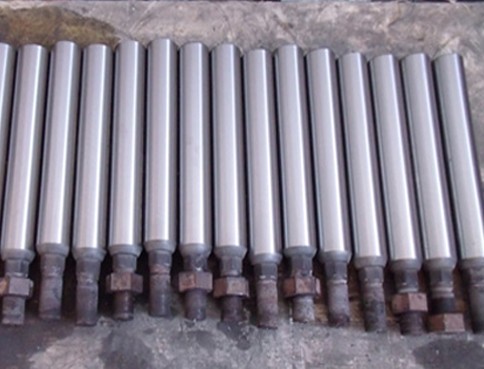

P13 HVOF Sprayed and Machined Plunger |
 |
 |
 |

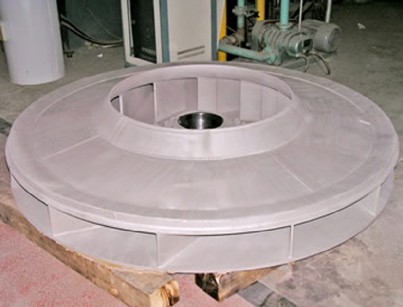

P14 HVOF Sprayed Draught Fan Rotor |

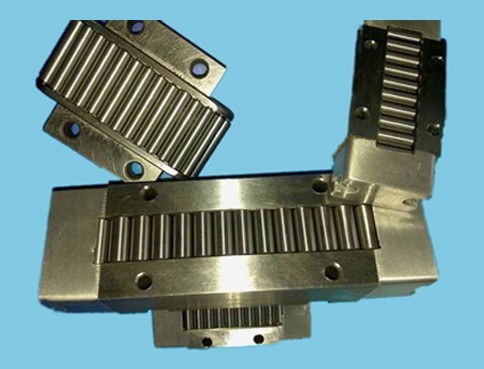

P15 Sprayed and Machined Machinery Guide Rail |

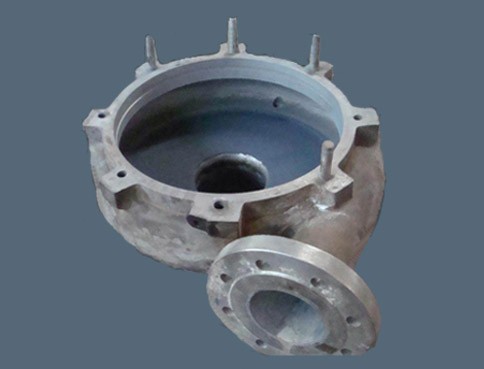

P16 HVOF Sprayed Mud Pump |
|
| 3. Package |
|
Standard packaging is by pail with polyethylene liner per 50 kg or by plastic bottle per 5 kg. |
|
|
 |
|
